Original AUTOOL BT360 Car Battery Tester 12V Digital Analyzer 2000CCA 220AH Multi-Languages BAD Cell Test Car Tools High Quality

There are two versions:

1.languages with English,Spanish, German, French,Russian.

2.languages with English, Polish, Chinese, Dutch and Italian.

Please leave us message when you place order, if not, we will send you English version(The frist one)

Advantage:

1. Simple and easy to use

2. Test batteries on and off the vehicle

3. Accurate results in milliseconds

   Compared to other tester, the test results of  Autool BT360 Battery tester are the same(tolerance ±15)  when testing at the same time

4. Battery Life Analysis

5. Analysis Result : Good or Replace

6. Large easy to read LCD display.

7. Test results based on JIS, EN, DIN, SAE and IEC Standards.

8. Vehicle cranking system test --- cranking time, voltage and status.

9. Vehicle charging system test --- load voltage, unloaded voltage, ripple status and charging system status.

Benefit:

1. Conductance correlates directly to the battery capacity

2. Passive testing method is safe.

3. Never discharges or drain the battery.

4. Able to test condition of discharged battery.

5. Consistent and repeatable results.

6. Provides unique indication of battery conditions.

7. Provides check the Alternator's charging and Starter's cranking conditions. It is maintenance free and no internal batteries required.

8. Powers up when connected to the battery posts during testing.

Function:

Test Result: Good or Replace

Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.

Internal resistance value (m )

Life in percentage (%)

Cranking system

Charging system

Application:

Use to test a wide range of 12V batteries (Starting [SLI], Deep Cycled and Marine) of Wet (Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption Glass Mat (AGM) and GEL cell. The major battery standards JIS, SAE, EN, DIN and IEC are supported.

Operating Parameters:

System voltage: 12 Volts

Input voltage range: 9V~15V

Power requirements: No internal batteries required. Power on when hooked up during testing.

Testing range: 100 ~ 2000 CCA, 100 ~ 1200 DIN, 100 ~ 1200 IEC, 100 ~ 1700 EN

AH range: 30-220AH

​

Tips: CCA100-2000, 30-220Ah, which is the highest CCA in the market.

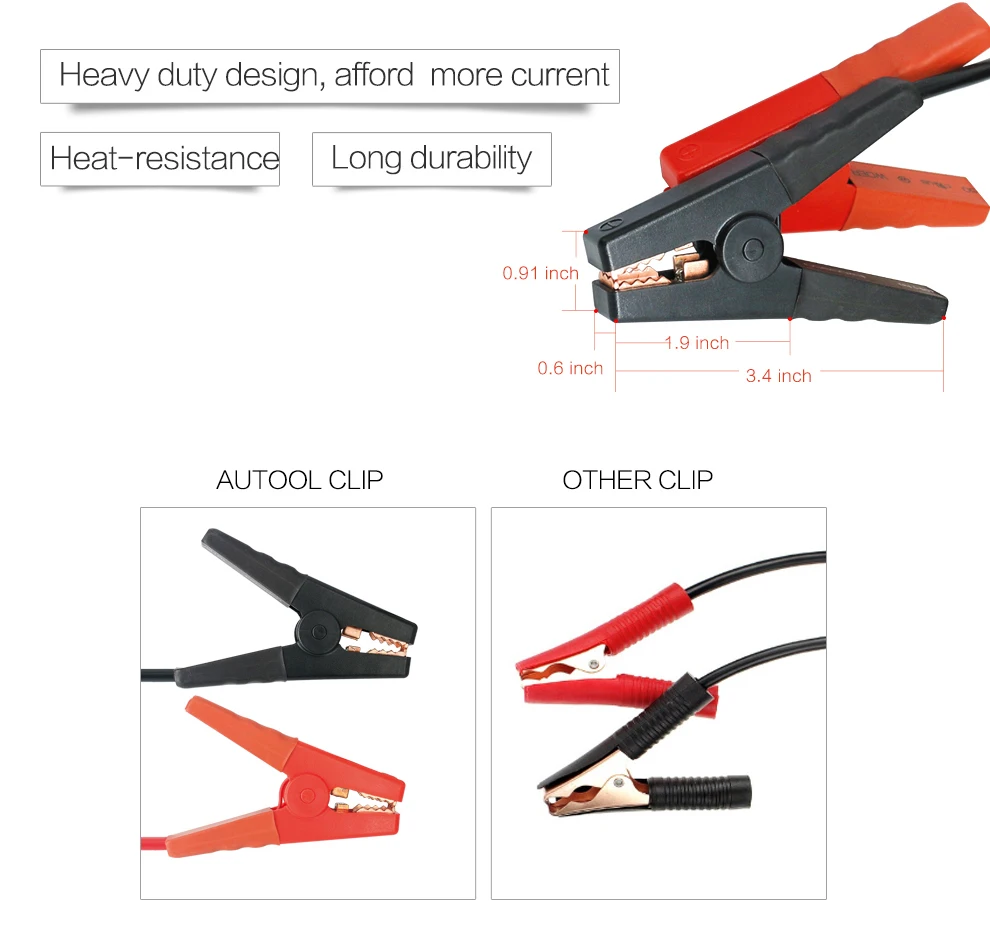

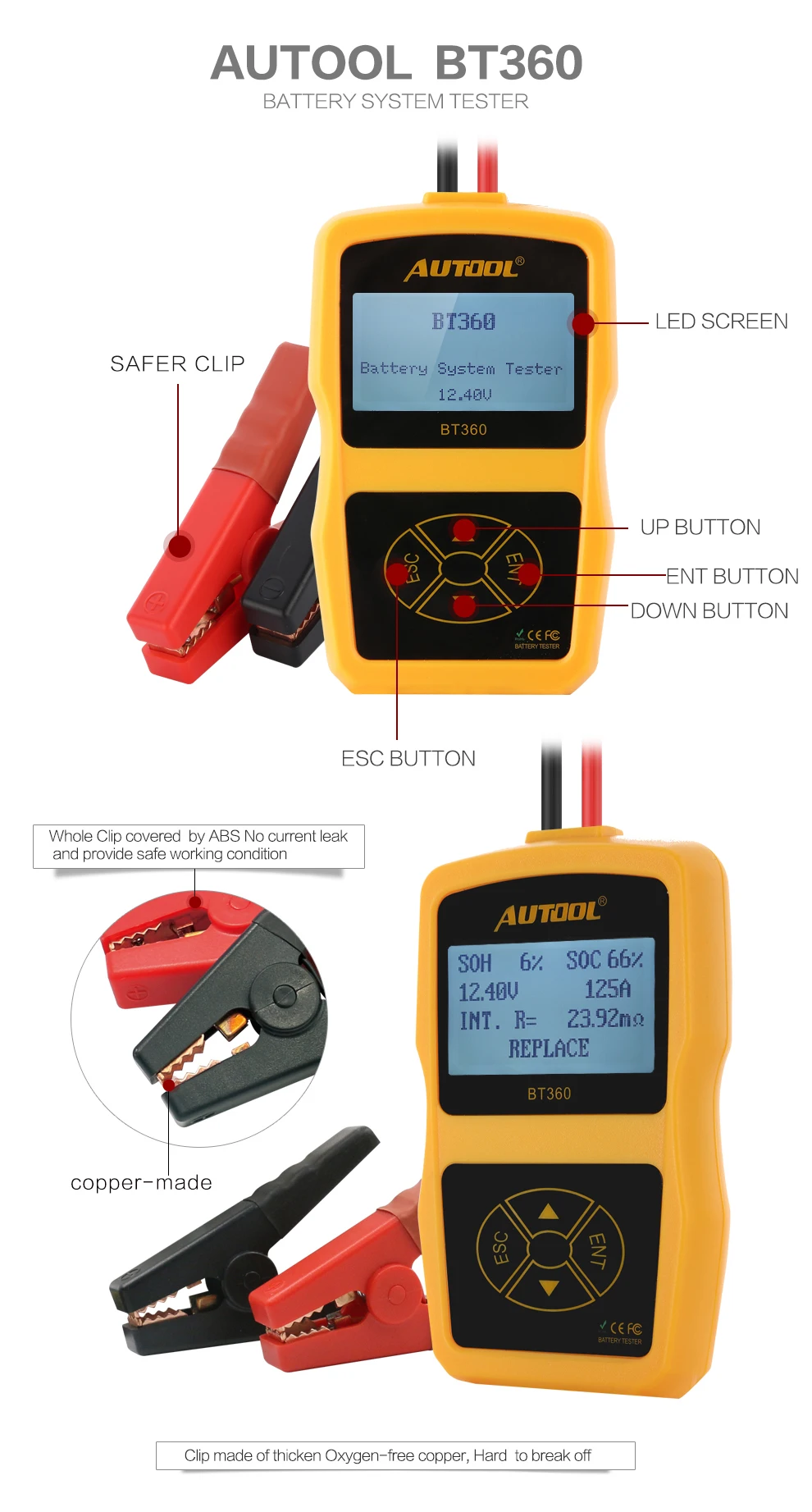

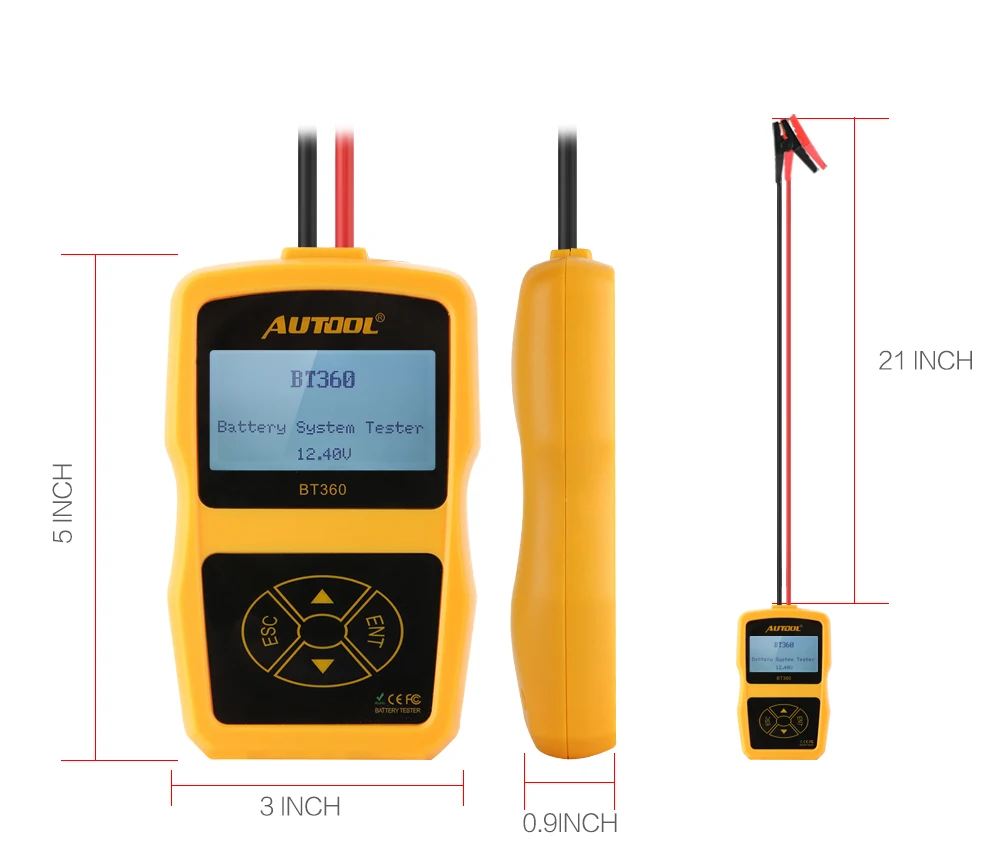

Tester Structure

BT-360 mainly consists of battery tester main unit and testing cables.

BT-360 Battery Tester main unit cover is made of ABS acid-resistant plastic.

Packing List:

1*BT360 Main Unit

1*An English Manual for BT360
