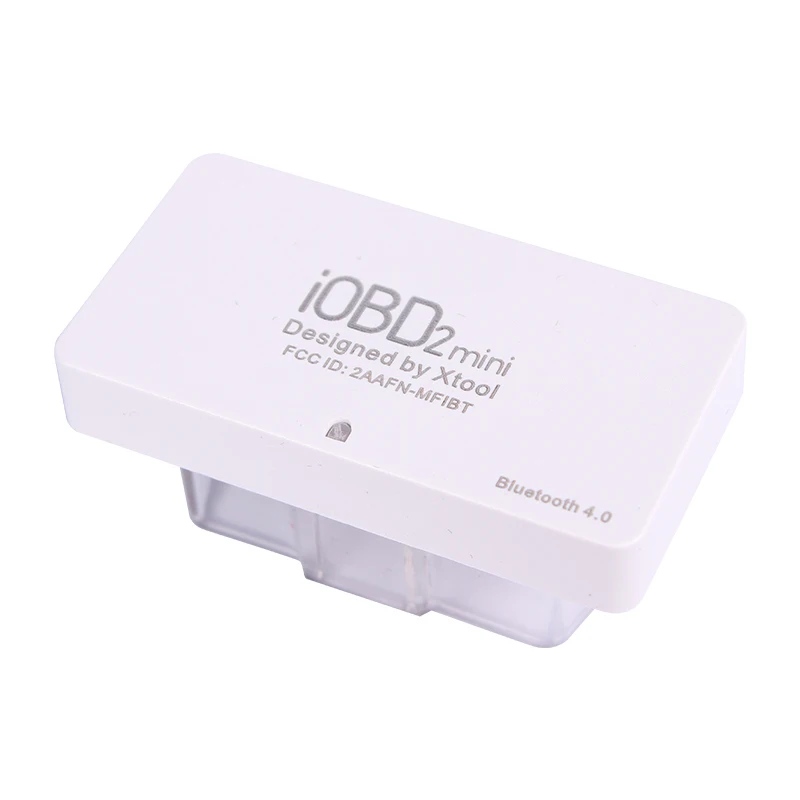

100% Original XTOOL IOBD2 MINI Support Bluetooth Work On Android/IOS OBD Better elm327 OBDII Diagnostic tool free shipping
$27.72 ...
$27.72
Regular price
$46.20
In stock
Supported OBDII Protocols:
1. ISO15765-4 (CAN)
2. ISO14230-4 (KWP2000)
3. ISO9141-2
4. J1850 VPW
5. J1850 PWM
MINI IOBD2 Support Car Makers:
European cars: Works on After 2001 and newer obd protocols which including IOBD2 support protocol list
Japanese Cars: Works on After 2003 and newer obd protocols which including IOBD2 support protocol list
Asian Cars: Works on After 2005 and newer obd2 obd protocols which including IOBD2 support protocol list
American Cars: Works on 1996 and newer obd protocols which including IOBD2 support protocol list
Even though it compatible with most cars from 2001 year, but different regions support the vehicle OBD2 protocol at different times, or some car is spercial design, so it may not compatible with some cars which do not support OBD2 protocol. If you are not sure whether it compatible with your car ,please do not hesitate to contact us first(tell me the car model, year and engine), I will check it for you.(to avoid you buy it wrong)
Support Both IOS and Android Device
Use Sofwtare APP: IOBD2 (search and download it from Apple store and Google Play Store)
Bluetooth Connection: Bluetooth 4.0
iOBD2 Mini OBD2 EOBD Scanner Function:
1.Diagnostic function:
The Diagnostic functions include:
Reads DTCs: Reads the current DTCs stored in the engine and shows their detailed information.
Clear DTCs: Clears the current DTCs.
Live Data: Reads the parameters related to the ECU.
Freeze Frame Data: ECU will set DTCs and record the data stream of the car engine at the moment when emissions related faults occurred. And the data is called freeze frame data.
Readiness Test: Shows the status of readiness test. Click Readiness test in the menu, the screen will display the test status of the car.
Support and Complete: It means the car supports this test and has completed.
Support But Incomplete: It means the car supports this test but has not completed.
Not supported: It means the car does not support this test.

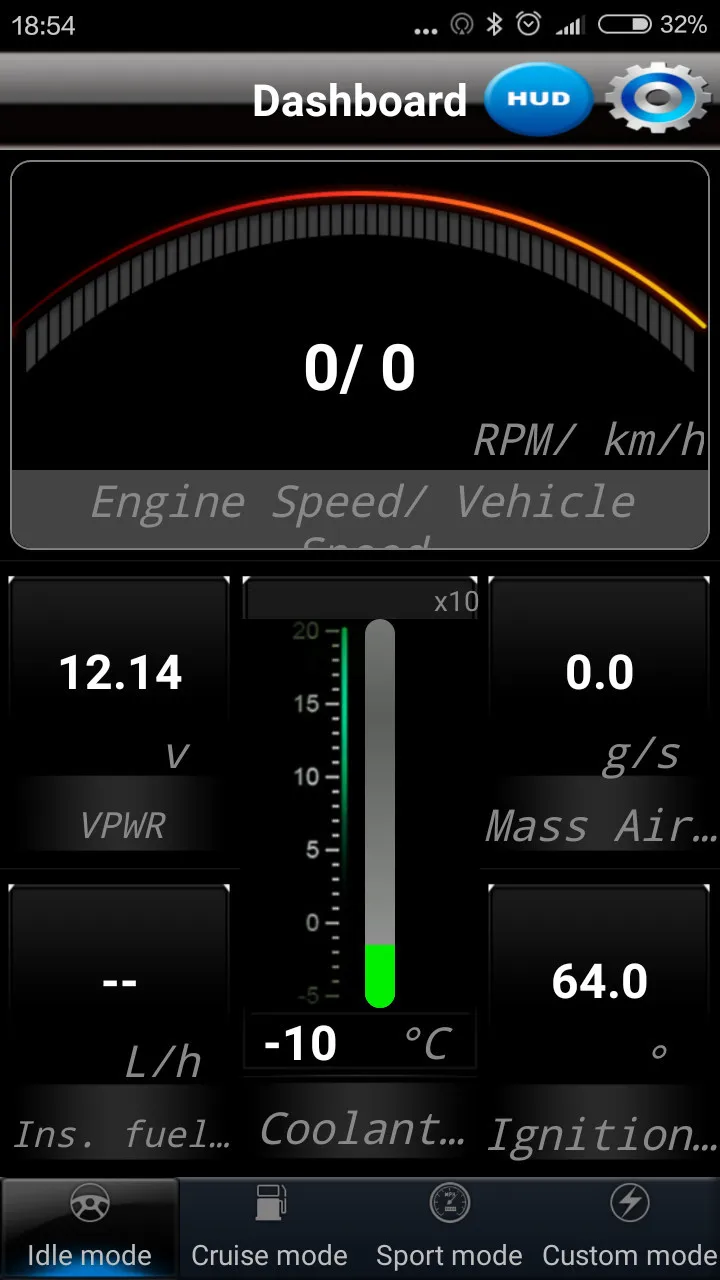

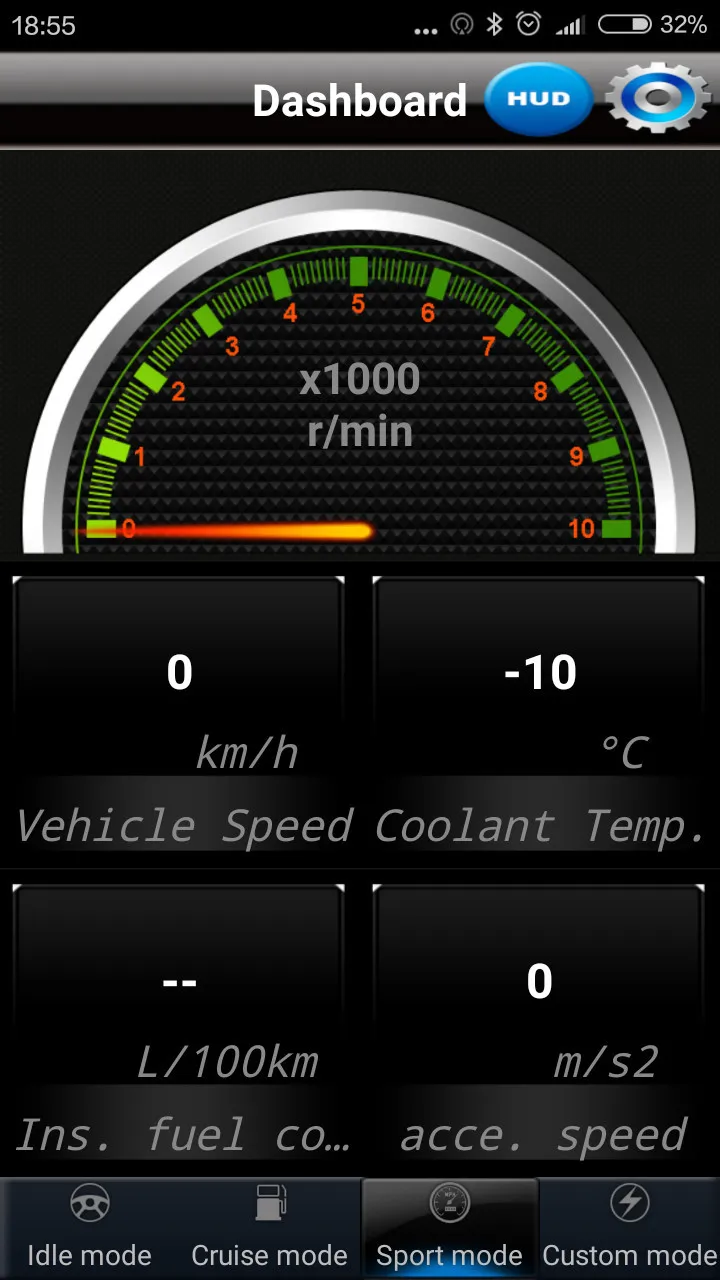

2) My Dashboard
[My dashboard] function includes
[Cruise mode]: vehicle speed, The current engine load, water temperature, Vehicle travel time, vehicle travel average speed, Continuous running mileage, instant fuel consumption(dynamic),Ever wished you had your own customizable gauges, showing only the data you were interested in.
Idle Mode: show you the engine rotational speed, water temperature, battery voltage, Air-intake temperature, instant fuel consumption (static), average fuel consumption. Ever wished you had your own customizable gauges, showing only the data you were interested in
Cruise mode: show you the vehicle speed, The current engine load, water temperature, Vehicle travel time, vehicle travel average speed, Continuous running mileage, instant fuel consumption(dynamic),Ever wished you had your own customizable gauges, showing only the data you were interested in.
Sport mode: show you the engine rotational speed, vehicle speed, water temperature Ever wished you had your own customizable gauges, showing only the data you were interested in.
Performance mode: show you the vehicle speed, capacity, torque, horsepower and you can also customize your gauges here

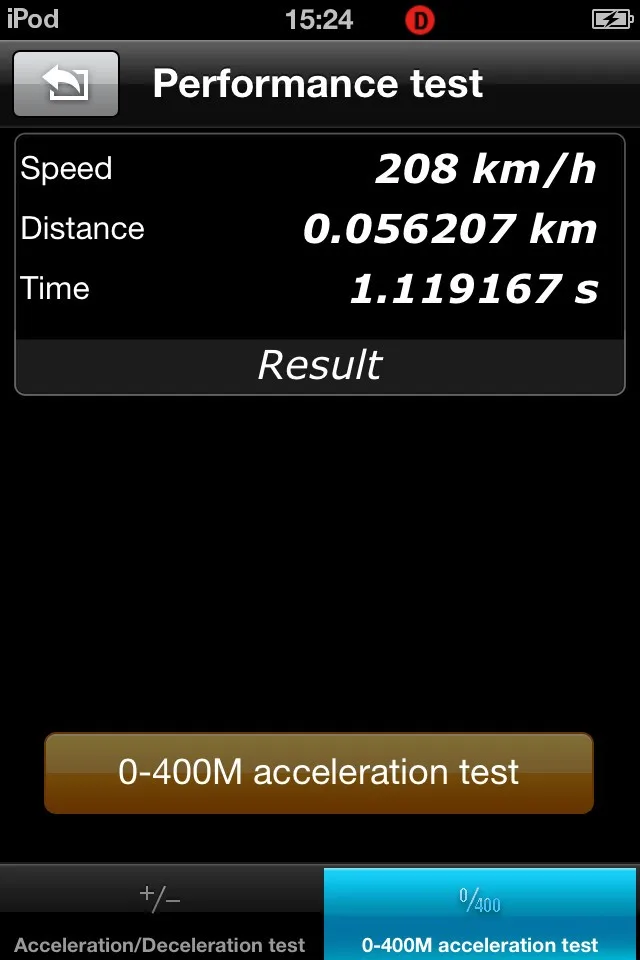

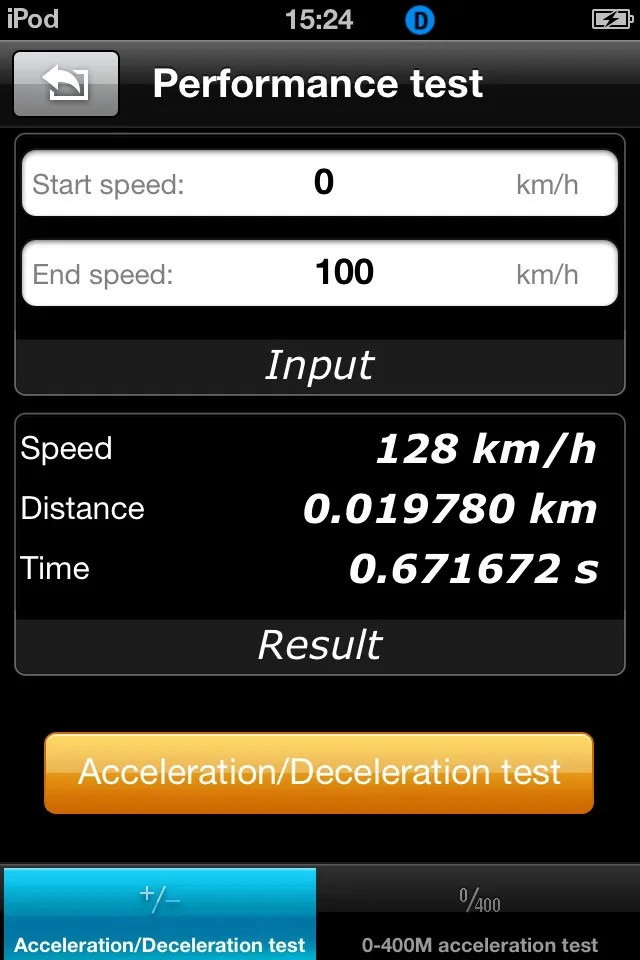

4) Performance Test
Performance Test Function Includes
Accelerate/Decelerate test: Test acceleration / deceleration process time and distance.
0 to 400m acceleration test: Test spending time from 0 to 400 meters.

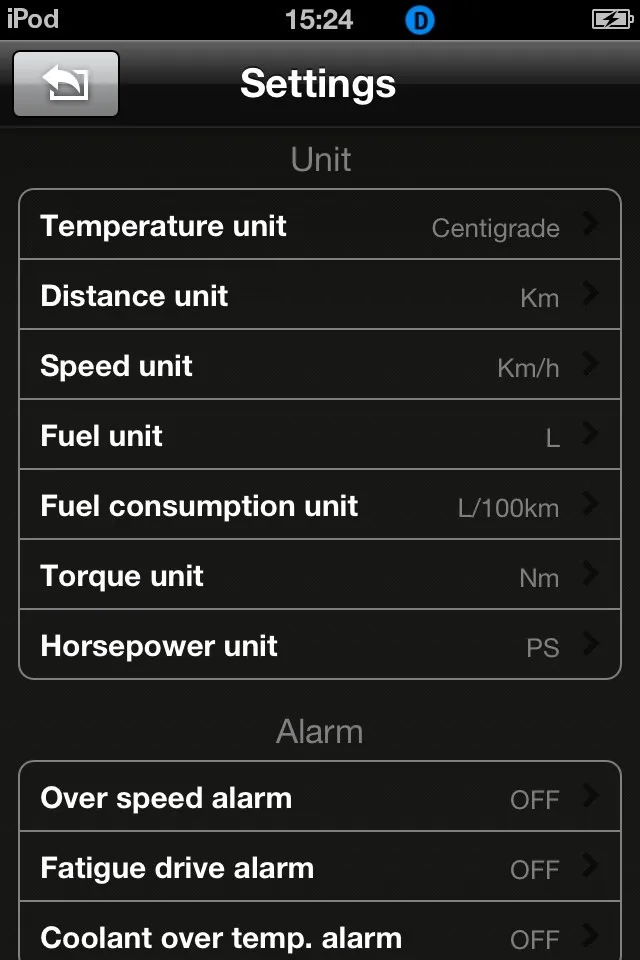

5) Setting
It allows users to change the unit of temperature, mileage, vehicle speed, fuel, fuel consumption, torque and horsepower, set the alarm for over speed, fatigue driving and water temperature, and set parameters of vehicle weight, fuel consumption coefficient and vehicle speed coefficient according to their needs on [Customize My Dashboard] (Picture 10) .

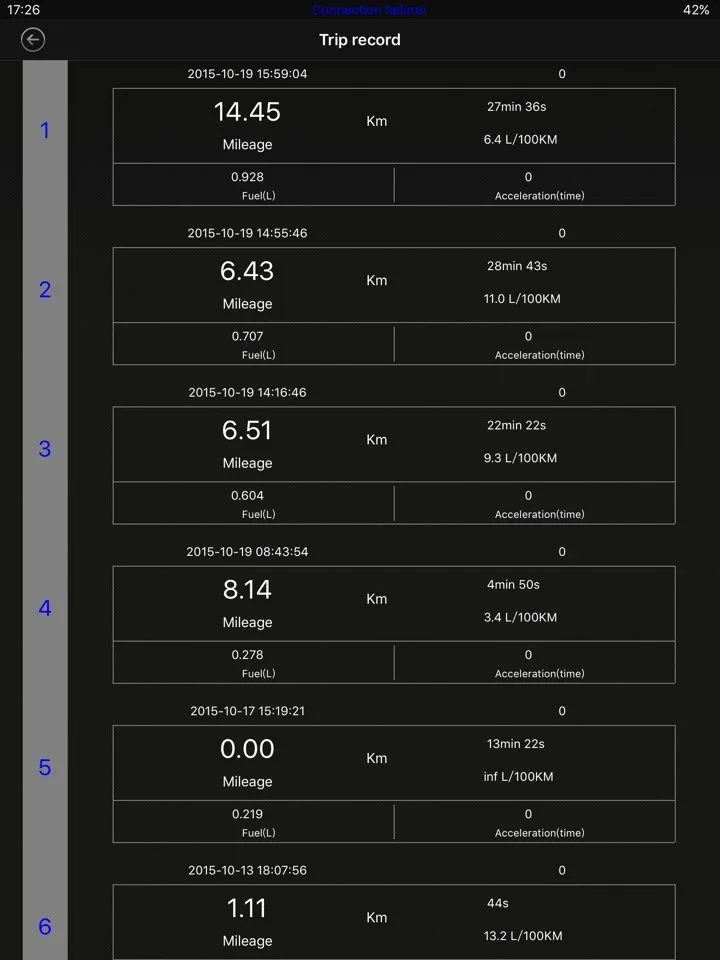

6) History
Driving data such as trip distance, average speed, fuel consumption and acceleration time will be recorded.
FAQ Area:

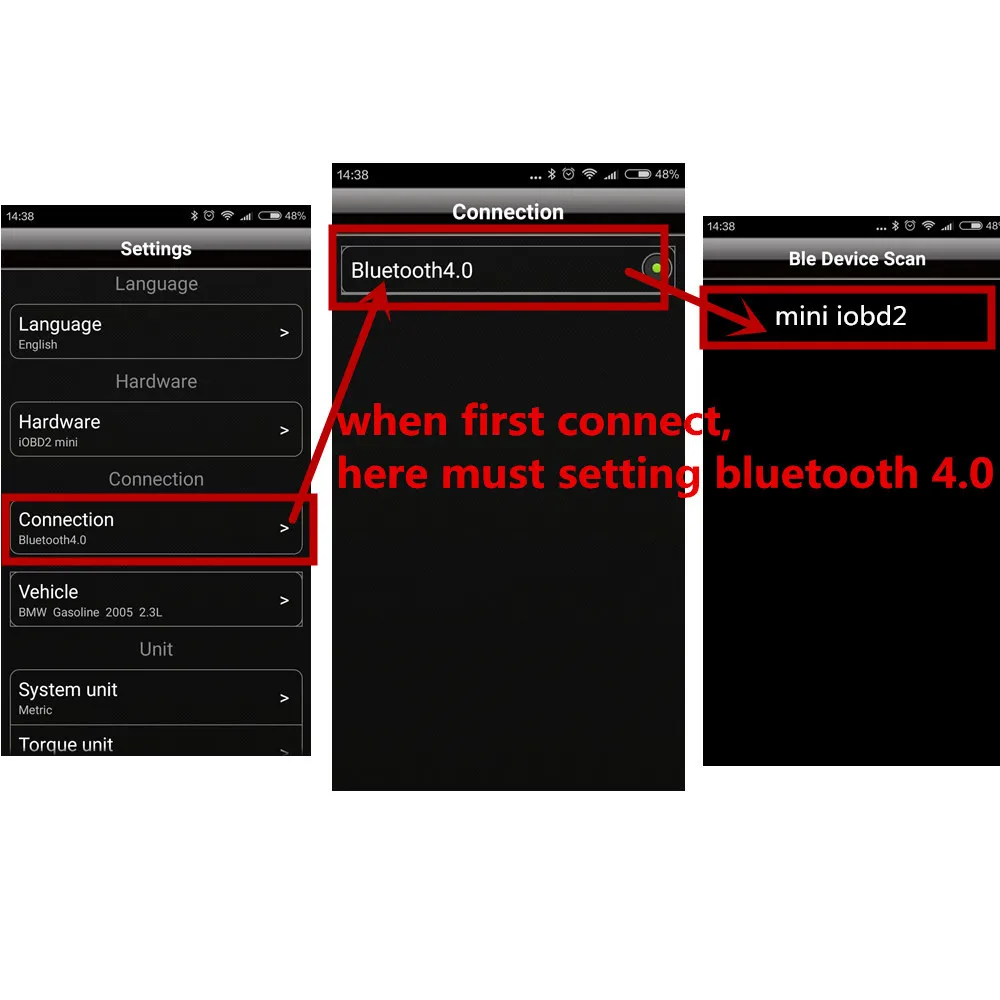

Q: how to slove mini iobd2 adapter cannot connect with my iphone and android phone?
A: when the first time connect with your phone via bluetooth 4.0, it must setting bluetooth 4.0 to you iobd mini adapter. like follow photo:

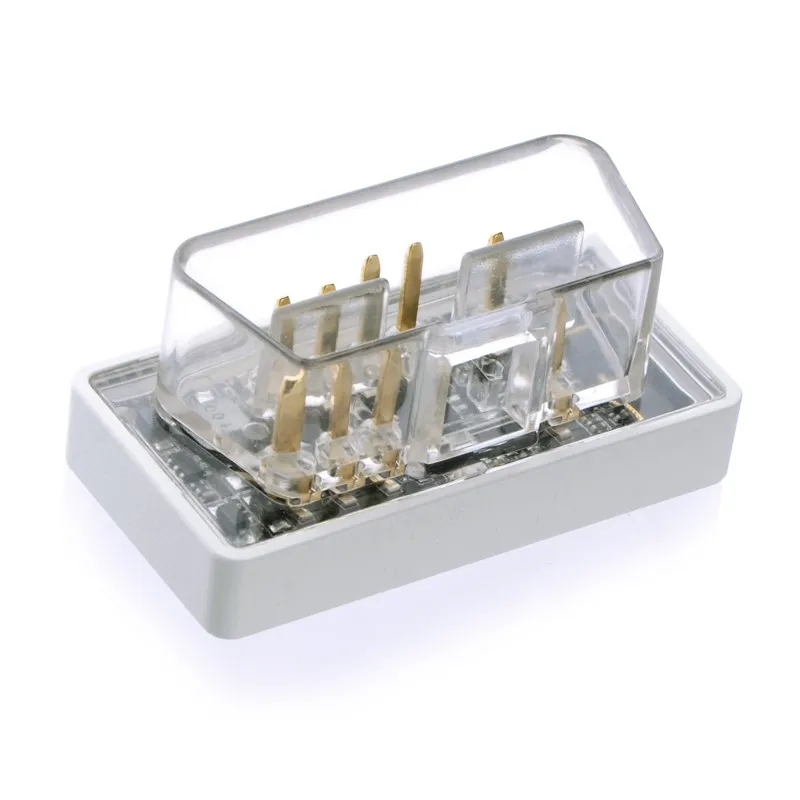

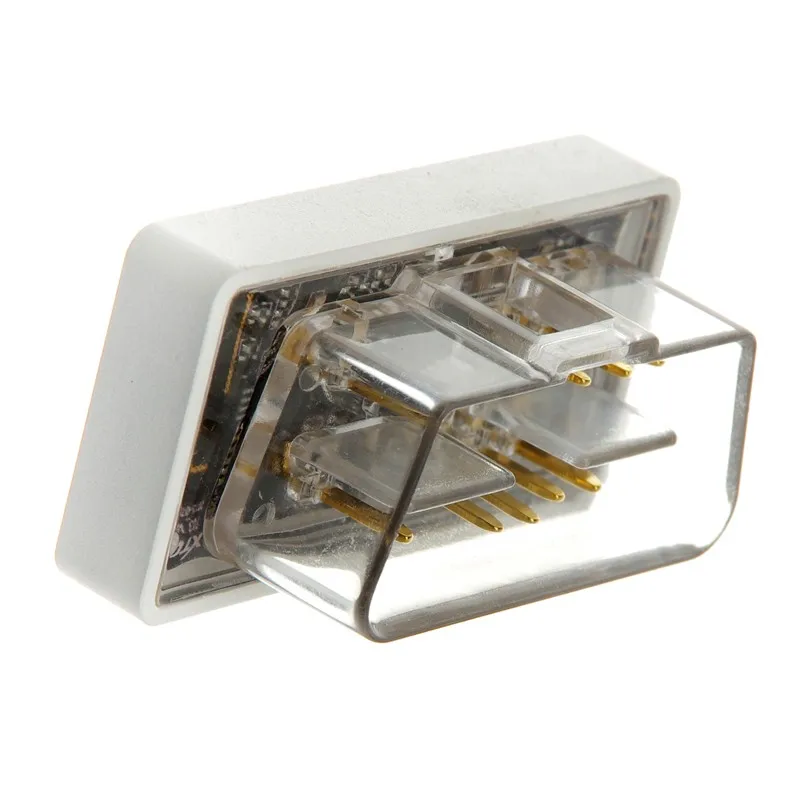

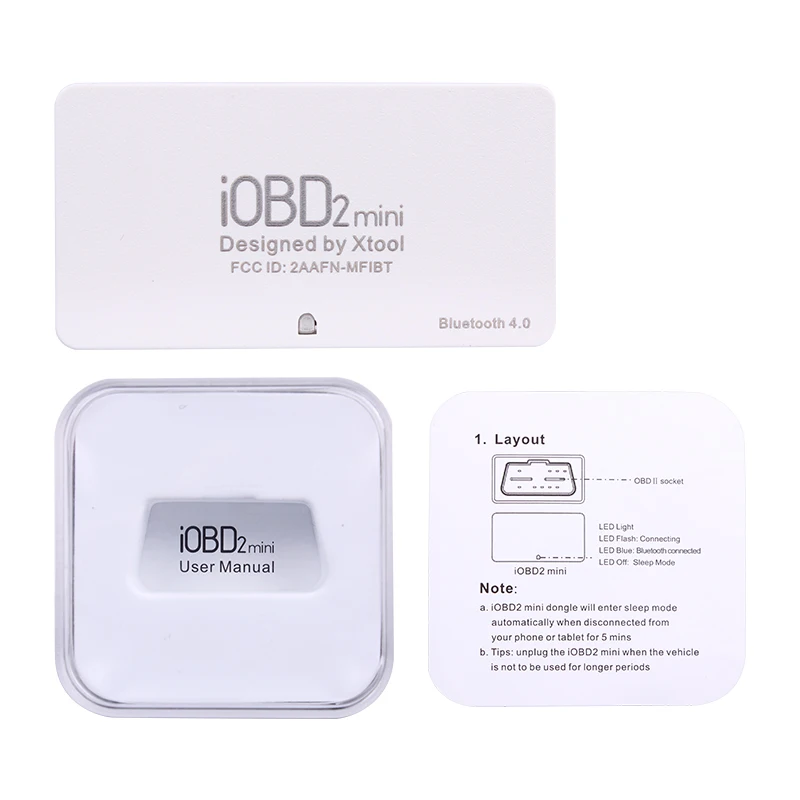

1pc x IOBD2 Mini

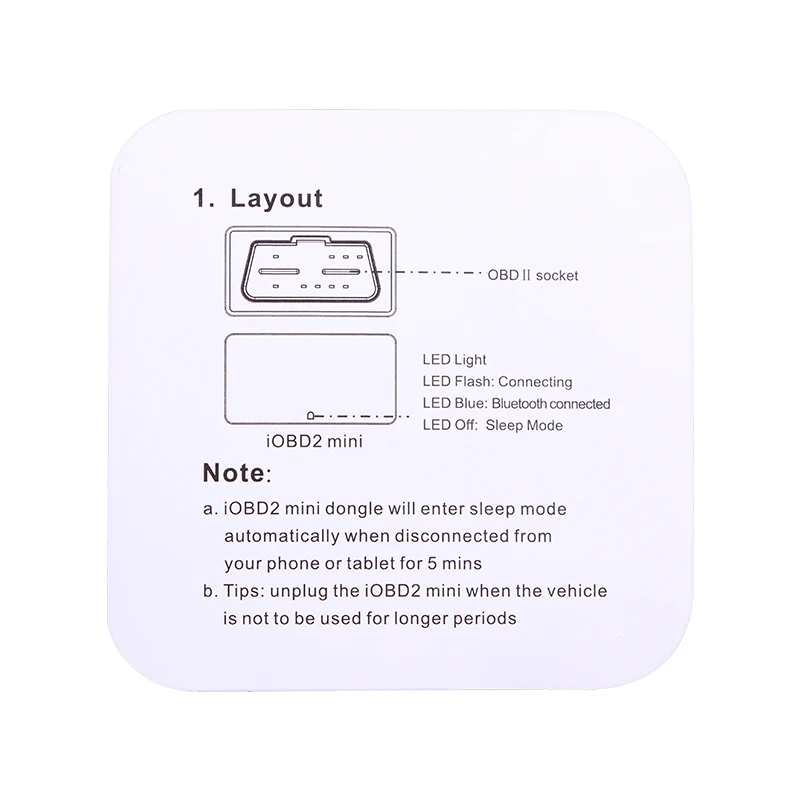

1pc x User's manual
